Boltby Bank^°

1402.3 m · net rise 156.5 m · total ascent 157.2 m · overall 11.2% · confidence: high · Boltby · North Yorkshire · share

Shape: sustained — 42% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 462 m.

Matches: 100 Greatest Cycling Climbs (Simon Warren) — As "Boltby Bank".

° The name is provisional: this climb is not yet matched to a documented name, so it was named from nearby map places. There is no evidence of local usage — (Renamed from 'Discovered lane (54.2762, -1.2325)' under the identification-certain rule (2026-08-13 exception): route verified against the established feature by geometry in the 2026-08-28 fame-door review (fame-backfill-verdicts.csv).). Corrections welcome.

Gradient ladder what do windows mean?

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Access: Road status under verification: the road audit could not fully vouch for this route (barrier gate (no access tag) 8.0 m off route; barrier gate (no access tag) 15.7 m off route; barrier gate (no access tag) 23.3 m off route; openroads covered 100%, restricted 0%). It may include service-road or restricted sections — check access on the ground.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Topo (contours) Vector   © OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap

Profile

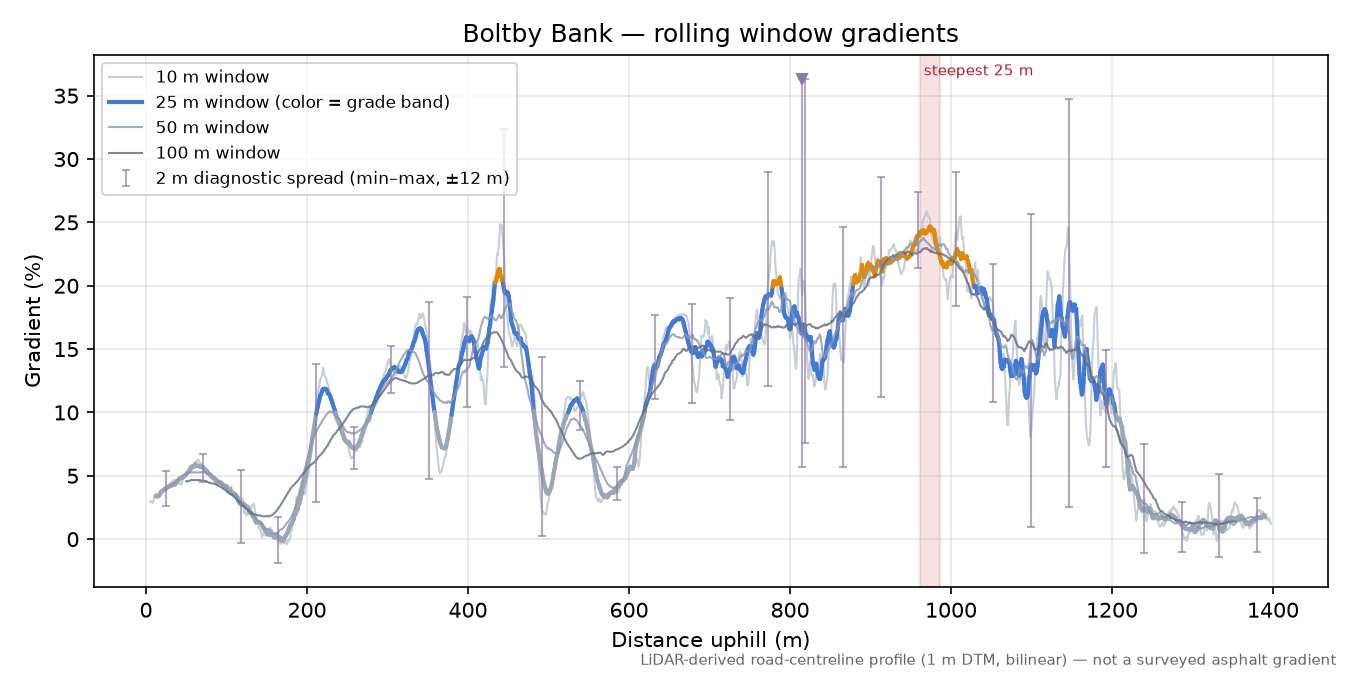

The profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m.



Measurement card

Provenance

{
  "analysis_version": "0.1.0",
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:27700",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/england/bulk_dtm_1m/SE4585.tif",
    "data/cache/england/bulk_dtm_1m/SE5085.tif"
  ],
  "calculated_at": "2026-08-16T01:20:02+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/england-2026-08-12-roads.osm.pbf",
  "osm_snapshot": "2026-08-12T20:21:46Z",
  "elevation_provider": "Environment Agency",
  "elevation_dataset": "EA LIDAR Composite DTM 1m (2022)",
  "elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Environment Agency",
  "elevation_coverage_id": "13787b9a-26a4-4775-8523-806d13af58fc__Lidar_Composite_Elevation_DTM_1m",
  "elevation_tile_ids": [
    "SE4585.tif",
    "SE5085.tif"
  ],
  "climb_origin": "discovered",
  "naming_note": "Renamed from 'Discovered lane (54.2762, -1.2325)' under the identification-certain rule (2026-08-13 exception): route verified against the established feature by geometry in the 2026-08-28 fame-door review (fame-backfill-verdicts.csv).",
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing.html"
}
