Discovered lane (53.2268, -3.3050)
1634.9 m · net rise 200.1 m · total ascent 203.3 m · overall 12.2% · confidence: needs confirmation · Caerwys · Clwyd · share
Shape: sustained — 36% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 501 m.
Not yet matched against documented climbs — the measurement stands on its own.
needs review short window divergence — treat short-window maxima here as provisional.
≈ Overhead cover (tree canopy or structures) spans 60% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈51% | 162–164 m | under overhead cover terrain reads 75.7% at 308–310 m across a structure — excluded |
| 3 m (diagnostic) | ≈44% | 162–165 m | under overhead cover terrain reads 73.4% at 308–311 m across a structure — excluded |
| 5 m | ≈36% | 200–205 m | under overhead cover terrain reads 67.8% at 307–312 m across a structure — excluded |
| 10 m | ≈27% | 196–206 m | under overhead cover terrain reads 50.9% at 306–316 m across a structure — excluded |
| 20 m | ≈22.9% | 151–171 m | under overhead cover terrain reads 34.7% at 302–322 m across a structure — excluded |
| 25 m | ≈21.5% | 181–206 m | under overhead cover terrain reads 31.7% at 297–322 m across a structure — excluded |
| 50 m | ≈20.2% | 693–743 m | under overhead cover terrain reads 26.0% at 272–322 m across a structure — excluded |
| 100 m | ≈19.6% | 649–749 m | under overhead cover terrain reads 20.1% at 215–315 m across a structure — excluded |
may continue beyond end Extent detection suggests reviewing where this climb starts/ends.
Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.
Ridden it, or know better? Submit data for this climb no account needed · Share this climb
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile

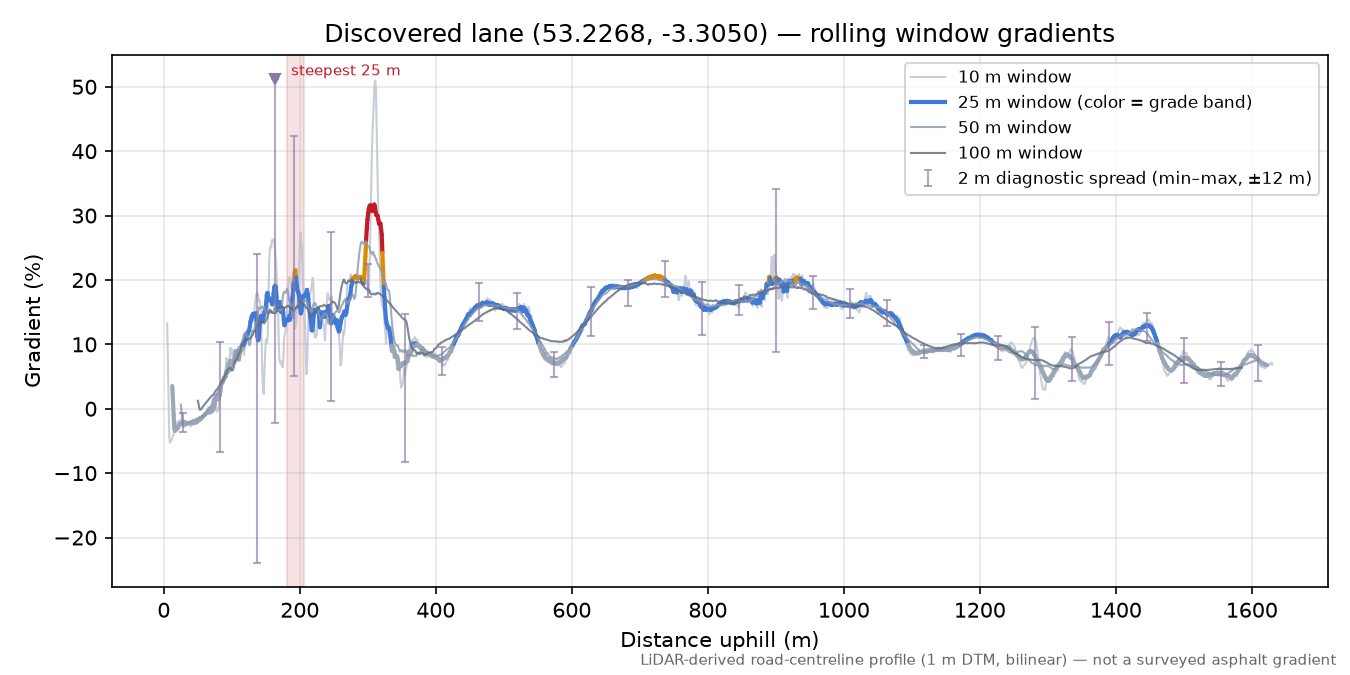

The profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m.
Measurement card
| Elevation | Welsh Government — Welsh Government LiDAR 1m DTM (2020-2023) |
|---|---|
| Resolution / CRS | 1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation |
| Tiles | wg_del_8_312369_20210222dtm.tif, wg_del_8_312370_20210222dtm.tif, wg_del_8_312371_20210222dtm.tif, wg_del_8_313369_20210222dtm.tif, wg_del_8_313370_20210222dtm.tif, wg_del_8_313371_20210222dtm.tif |
| Road centreline | OpenStreetMap (local PBF extract), snapshot 2026-08-10T20:21:40Z |
| Quality status | measurement confidence U; review flags: short window divergence |
| Analysis | OCL 0.1.0, analysis 0.1.0, run chunk-01-260831, calculated 2026-09-01 |
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_8_312369_20210222dtm.tif",
"data/cache/wales/dtm_1m/wg_del_8_312370_20210222dtm.tif",
"data/cache/wales/dtm_1m/wg_del_8_312371_20210222dtm.tif",
"data/cache/wales/dtm_1m/wg_del_8_313369_20210222dtm.tif",
"data/cache/wales/dtm_1m/wg_del_8_313370_20210222dtm.tif",
"data/cache/wales/dtm_1m/wg_del_8_313371_20210222dtm.tif"
],
"calculated_at": "2026-09-01T01:51:17+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"run_id": "chunk-01-260831",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_8_312369_20210222dtm.tif",
"wg_del_8_312370_20210222dtm.tif",
"wg_del_8_312371_20210222dtm.tif",
"wg_del_8_313369_20210222dtm.tif",
"wg_del_8_313370_20210222dtm.tif",
"wg_del_8_313371_20210222dtm.tif"
],
"elevation_capture_dates": [
"22-02-2021"
],
"trimmed_from": "discovered-lane-53-2268-3-3050",
"trim_cut_m": [
[
1634.9,
1946.1
]
],
"license": "ODbL-1.0",
"license_url": "https://howsteep.org/licensing.html"
}
