Discovered lane (52.2837, -2.3727)

902.5 m · net rise 70.3 m · total ascent 74.9 m · overall 7.8% · confidence: high · Great Witley · Worcestershire · share

Shape: sustained — 35% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 73 m.

Not yet matched against documented climbs — the measurement stands on its own.

Gradient ladder what do windows mean?

Window	Maximum	Located at
2 m (diagnostic)	≈47%	894–896 m	under overhead cover terrain reads 63.9% at 149–151 m across a structure — excluded
3 m (diagnostic)	≈45%	893–896 m	under overhead cover terrain reads 50.8% at 149–152 m across a structure — excluded
5 m	38%	422–427 m
10 m	31%	421–431 m
20 m	21.6%	876–896 m
25 m	20.9%	872–897 m
50 m	20.0%	847–897 m
100 m	15.2%	797–897 m

≈ appears only on the 2–3 m diagnostic rows here, which does not lower the confidence letter: those windows are never headline values or ranking keys, so confidence reflects the standard (5–100 m) windows — which are clean on this climb.

may start earliermay continue beyond end Extent detection suggests reviewing where this climb starts/ends.

Map

Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap

This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.

Access: Held from rankings 2026-09-04 (D21 C, hidden-steeper re-line): re-lined onto the bench the EA point cloud finds, but under the traced line's 25 m maximum the cloud reads flank, ambiguous or absent — not a plain road bed — so neither the published nor the re-lined number is verified. Published number stands; off the rankings until a cross-section look.

Measured, not vetted. This page records what the laser record shows about the road's shape — nothing more. Nobody has necessarily ridden or inspected this road for the survey, and a page here is not a recommendation and no guarantee that the road is open, surfaced, rideable or safe. Gates, private sections, missing rights of way and hazards do not show up in elevation data. Check access and conditions on the ground and make your own judgment.

Ridden it, or know better? Submit data for this climb no account needed · Share this climb

Discovered lane (52.2837, -2.3727) LiDAR hillshade map with contours

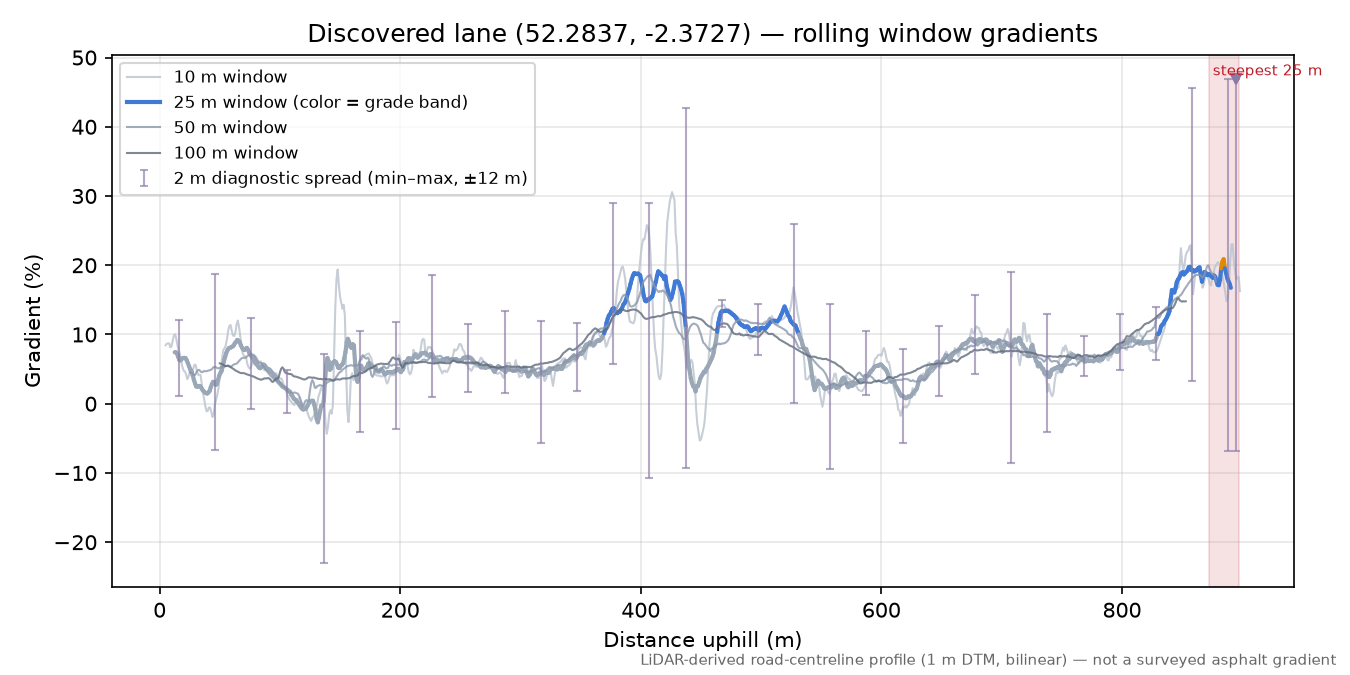

Profile

The profile and gradient chart share one position — move your pointer over them and the marker follows. Colors are the gradient bands; the shaded span is the steepest 25 m.

Measurement card

Elevation	Environment Agency — EA LIDAR Composite DTM 1m (2022)
Resolution / CRS	1.0 m grid, EPSG:27700; sampled every 1.0 m, bilinear interpolation
Tiles	SO7060.tif, SO7065.tif, SO7565.tif
Road centreline	OpenStreetMap (local PBF extract), snapshot 2026-08-12T20:21:46Z
Quality status	measurement confidence A; caveated windows: structure excluded
Analysis	OCL 0.1.0, analysis 0.1.0, run chunk-05-260901, calculated 2026-09-01

Provenance

{
  "analysis_version": "0.1.0",
  "sample_interval_m": 1.0,
  "interpolation": "bilinear",
  "smoothing": "none",
  "gradient_windows_m": [
    5.0,
    10.0,
    20.0,
    25.0,
    50.0,
    100.0
  ],
  "diagnostic_windows_m": [
    2.0,
    3.0
  ],
  "elevation_crs": "EPSG:27700",
  "elevation_resolution_m": 1.0,
  "elevation_tiles": [
    "data/cache/england/bulk_dtm_1m/SO7060.tif",
    "data/cache/england/bulk_dtm_1m/SO7065.tif",
    "data/cache/england/bulk_dtm_1m/SO7565.tif"
  ],
  "calculated_at": "2026-09-01T06:46:01+00:00",
  "road_source": "OpenStreetMap (local PBF extract)",
  "road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
  "osm_pbf_path": "data/cache/pbf/england-2026-08-12-roads.osm.pbf",
  "osm_snapshot": "2026-08-12T20:21:46Z",
  "run_id": "chunk-05-260901",
  "elevation_provider": "Environment Agency",
  "elevation_dataset": "EA LIDAR Composite DTM 1m (2022)",
  "elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Environment Agency",
  "elevation_coverage_id": "13787b9a-26a4-4775-8523-806d13af58fc__Lidar_Composite_Elevation_DTM_1m",
  "elevation_tile_ids": [
    "SO7060.tif",
    "SO7065.tif",
    "SO7565.tif"
  ],
  "canopy_check": "unavailable \u2014 surface model missing: [Errno 28] No space left on device",
  "trimmed_from": "discovered-lane-52-2837-2-3727",
  "trim_cut_m": [
    [
      902.5,
      1198.9
    ]
  ],
  "license": "ODbL-1.0",
  "license_url": "https://howsteep.org/licensing.html"
}
