Cwm Wern-ddu to Llanfihangel-y-Creuddyn°
1548.5 m · net rise 98.2 m · total ascent 109.5 m · overall 6.3% · confidence: good · Llanfihangel-y-Creuddyn · Ceredigion
Shape: sustained — 40% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 126 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the OS road network, surface models and map tags, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
° The name is provisional: this climb is not yet matched to a documented name, so it was named from nearby map places. There is no evidence of local usage — (auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (52.3643, -3.9689)'). Corrections welcome.
≈ Overhead cover (tree canopy or structures) spans 13% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈43% | 949–951 m | under overhead cover terrain reads 58.1% at 1448–1450 m across a structure — excluded |
| 3 m (diagnostic) | ≈39% | 948–951 m | under overhead cover terrain reads 45.2% at 1447–1450 m across a structure — excluded |
| 5 m | ≈34% | 1438–1443 m | under overhead cover terrain reads 34.6% at 1447–1452 m across a structure — excluded |
| 10 m | ≈28% | 1435–1445 m | under overhead cover terrain reads 30.9% at 1440–1450 m across a structure — excluded |
| 20 m | ≈21.9% | 1425–1445 m | under overhead cover terrain reads 26.5% at 1432–1452 m across a structure — excluded |
| 25 m | ≈20.1% | 1420–1445 m | under overhead cover terrain reads 24.4% at 1427–1452 m across a structure — excluded |
| 50 m | ≈18.1% | 1395–1445 m | under overhead cover terrain reads 19.7% at 1402–1452 m across a structure — excluded |
| 100 m | ≈15.7% | 1345–1445 m | under overhead cover terrain reads 16.9% at 1357–1457 m across a structure — excluded |
may_continue_beyond_end Extent detection suggests reviewing where this climb starts/ends.

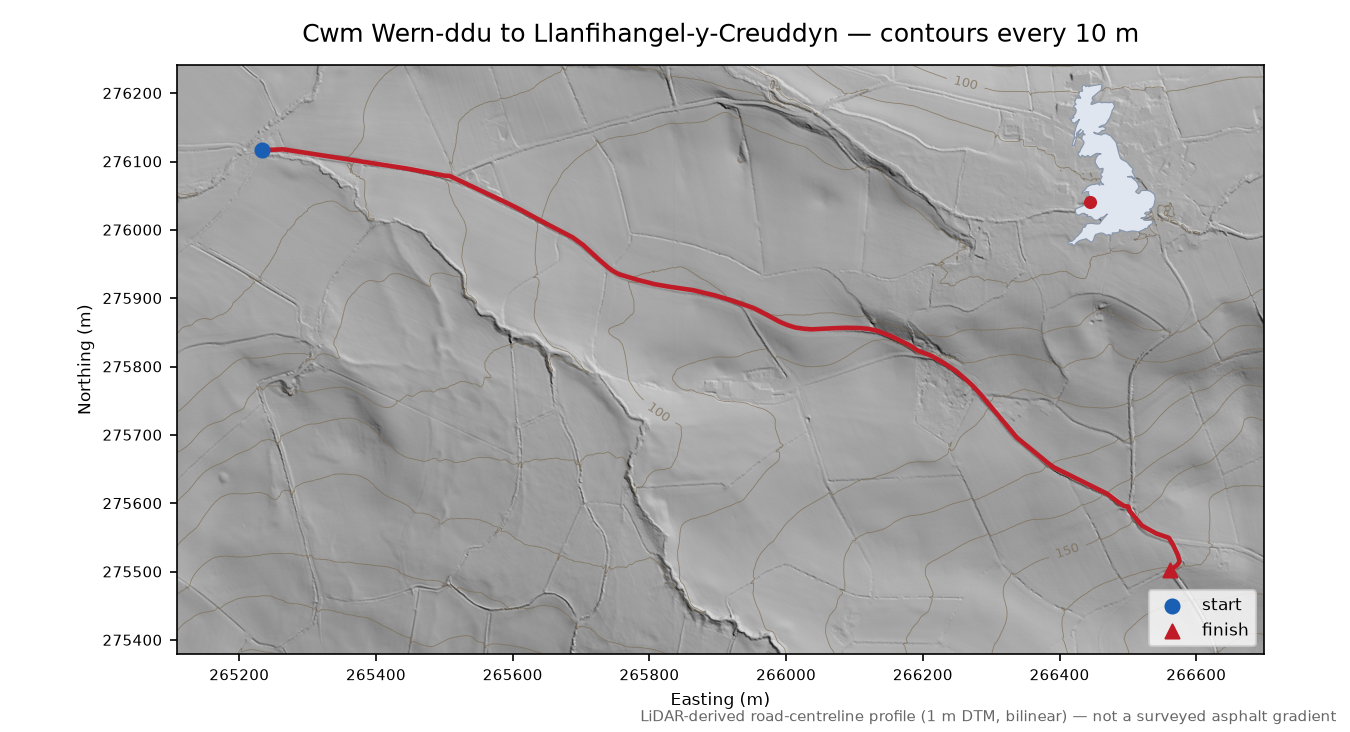

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Ridden it, or know better? Submit data for this climb no account needed
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_22_266275_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_22_266276_20220114dtm.tif",
"data/cache/wales/dtm_1m/wg_del_23_265275_20220117dtm.tif",
"data/cache/wales/dtm_1m/wg_del_23_265276_20220117dtm.tif"
],
"calculated_at": "2026-08-12T09:08:19+00:00",
"road_source": "OpenStreetMap (local PBF extract)",
"road_attribution": "\u00a9 OpenStreetMap contributors, ODbL",
"osm_pbf_path": "data/cache/pbf/wales-2026-08-11.osm.pbf",
"osm_snapshot": "2026-08-10T20:21:40Z",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_22_266275_20220114dtm.tif",
"wg_del_22_266276_20220114dtm.tif",
"wg_del_23_265275_20220117dtm.tif",
"wg_del_23_265276_20220117dtm.tif"
],
"elevation_capture_dates": [
"14-01-2022",
"17-01-2022"
],
"climb_origin": "discovered",
"notes": "Coarse pass: max 11.0% over 200 m (Terrain 50), gain 66.4 m over 1136 m way. EXTENDED by graph walk: +1 segment(s) at base, +2 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. ADOPTED (notable slice 2026-08-11): clean-steep. AUTO-NAMED from gazetteer (hypothesis, unreviewed): was 'Discovered lane (52.3643, -3.9689)'.",
"naming_note": "auto-named from gazetteer (hypothesis, unreviewed); discovered as 'Discovered lane (52.3643, -3.9689)'"
}
