Pen-y-lan to Llangattock Vibon Avel
677.0 m · net rise 59.8 m · total ascent 62.0 m · overall 8.8% · confidence: good
Shape: stepped — 49% of the climbing sits in a quarter of the distance; longest continuous stretch at 10%+ is 116 m.
Found purely from mapping and LiDAR data, and not yet matched against books, race records or lists — it may be well known to locals under a name we've never heard. It was cross-checked against the OS road network, surface models and map tags, but a discovery can still be an artifact of the terrain model or the map. Treat it as a well-evidenced hypothesis until someone has ridden it. If you know this road, tell us what you found — photographs, corrections and local knowledge all welcome; the map links below let you scout it first.
≈ Overhead cover (tree canopy or structures) spans 18% of this route — detected by comparing the surface model (DSM, treetops and rooftops) against the terrain model (DTM, bare ground). Under cover the bare-ground model is built from fewer laser returns, so metre-scale readings can wobble; maxima whose window sits in a covered zone are marked ≈ below — less certain — the flag does not say whether the true value is higher or lower. Longer windows average over more clean ground and are steadier.
Gradient ladder what do windows mean?
| Window | Maximum | Located at | |
|---|---|---|---|
| 2 m (diagnostic) | ≈32% | 417–419 m | under overhead cover terrain reads 57.5% at 487–489 m across a structure — excluded |
| 3 m (diagnostic) | ≈32% | 417–420 m | under overhead cover terrain reads 49.9% at 486–489 m across a structure — excluded |
| 5 m | ≈31% | 415–420 m | under overhead cover terrain reads 48.3% at 484–489 m across a structure — excluded |
| 10 m | ≈29% | 411–421 m | under overhead cover terrain reads 31.5% at 483–493 m across a structure — excluded |
| 20 m | ≈27.1% | 403–423 m | under overhead cover |
| 25 m | ≈26.5% | 404–429 m | under overhead cover |
| 50 m | ≈23.2% | 380–430 m | under overhead cover |
| 100 m | ≈19.1% | 334–434 m | under overhead cover terrain reads 19.6% at 389–489 m across a structure — excluded |
may_start_earlier Extent detection suggests reviewing where this climb starts/ends.

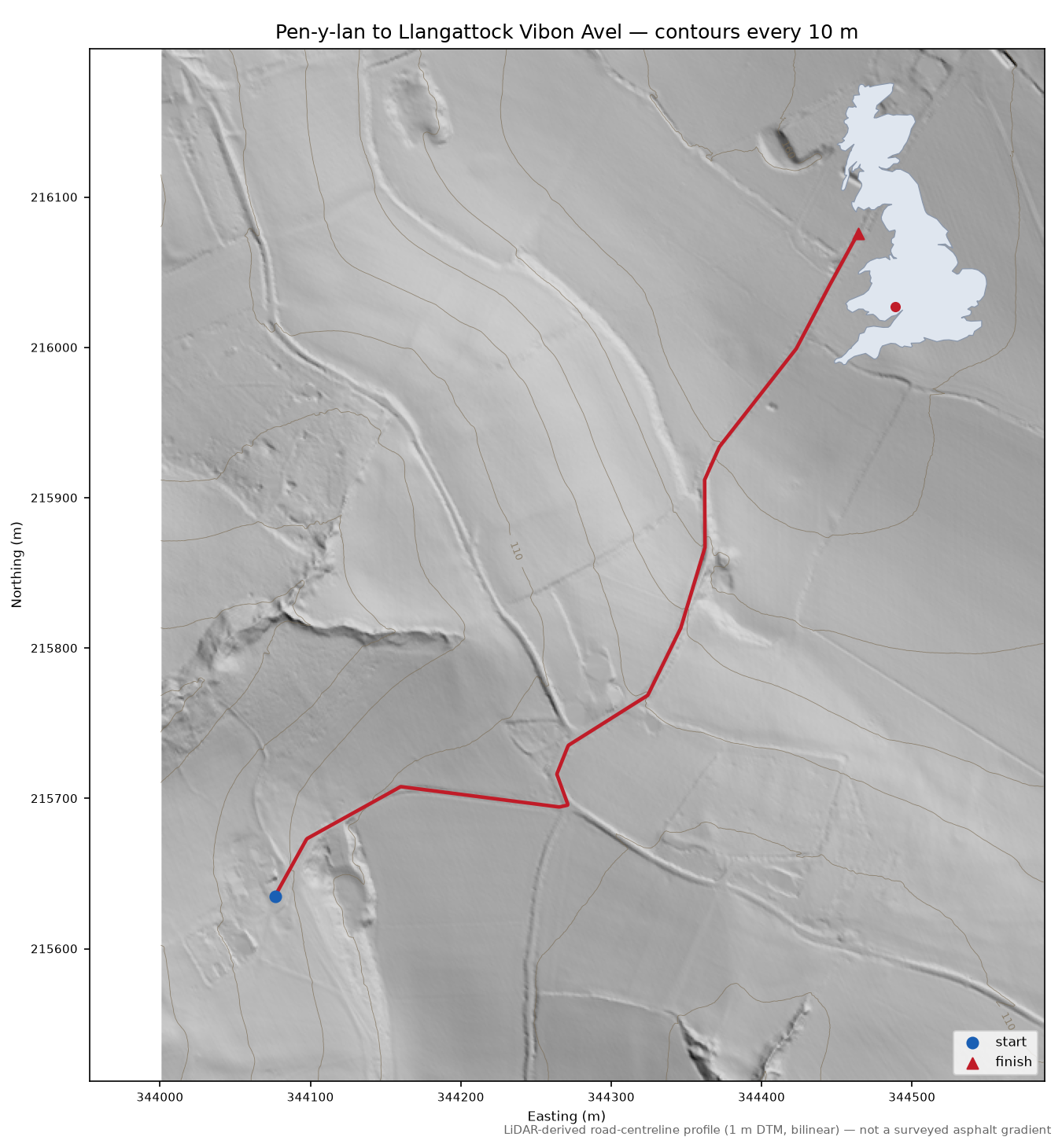

Map
Check this route yourself: Google Maps route via their router · Street View at the base where coverage exists · geojson.io our exact measured line · OpenTopoMap
This climb's data: OCL JSON — the full gradient ladder, quality flags and provenance in the OpenClimb Ladder format.
Ridden it, or know better? Submit data for this climb no account needed
© OpenStreetMap contributors · topo tiles © OpenTopoMap (CC-BY-SA) · vector tiles OpenFreeMap
Profile
Provenance
{
"analysis_version": "0.1.0",
"sample_interval_m": 1.0,
"interpolation": "bilinear",
"smoothing": "none",
"gradient_windows_m": [
5.0,
10.0,
20.0,
25.0,
50.0,
100.0
],
"diagnostic_windows_m": [
2.0,
3.0
],
"elevation_crs": "EPSG:27700",
"elevation_resolution_m": 1.0,
"elevation_tiles": [
"data/cache/wales/dtm_1m/wg_del_20_344215_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_344216_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_345215_20220112dtm.tif",
"data/cache/wales/dtm_1m/wg_del_20_345216_20220112dtm.tif"
],
"calculated_at": "2026-08-13T02:09:48+00:00",
"road_source": "wales-discovered-adopted-routes/discovered-lane-51-8434-2-8044.geojson",
"elevation_provider": "Welsh Government",
"elevation_dataset": "Welsh Government LiDAR 1m DTM (2020-2023)",
"elevation_licence": "Open Government Licence v3 \u2014 \u00a9 Crown copyright Welsh Government",
"elevation_catalogue_layer": "geonode:welsh_government_lidar_tile_catalogue_2020_2023",
"elevation_tile_ids": [
"wg_del_20_344215_20220112dtm.tif",
"wg_del_20_344216_20220112dtm.tif",
"wg_del_20_345215_20220112dtm.tif",
"wg_del_20_345216_20220112dtm.tif"
],
"elevation_capture_dates": [
"12-01-2022"
],
"route_summit_trim_m": 1162.6,
"route_summit_trim_loss_m": 8.6,
"climb_origin": "discovered",
"notes": "Coarse pass: max 16.5% over 200 m (Terrain 50), gain 35.3 m over 1612 m way. EXTENDED by graph walk: +1 segment(s) at base, +0 at top (stop: base=no_descending_continuation, top=no_ascending_continuation; min_avg=2.0%). Review before adopting. ROAD-REVIEW: way 399374378: unnamed service way; way 399374378: service way, surface untagged ADOPTED (notable slice 2026-08-11): qualified-steep. AUTO-NAMED from gazetteer (hypothesis, unreviewed): was 'Discovered lane (51.8434, -2.8044)'."
}
